Kinet Mill HPM-AC Series

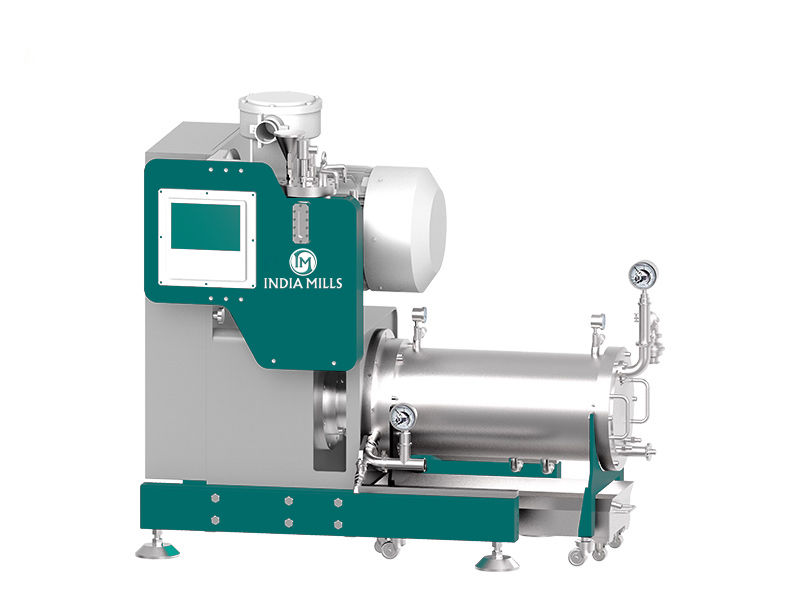

HPM-AC is a bead mill with centrifugal force separation device. The product outlet is at the back end of the grinding chamber, beside the mechanical seal. The traditional SCS large-flow sieve drum centrifugal separator and dynamic classifier perfectly combine to form SMF+ efficient centrifugal dynamic separation system, which can be applied to the grinding of materials with maximum viscosity of 20000cps.

The structural design and arrangement of HPM-AC series grinding elements are conducive to improving grinding and dispersion efficiency. Within the dynamic classifier, SMF+ (SuperMaxFlow Dynamic Separator system) and the grinding pin are fixed on the stirring shaft through screw and rotated together, forming a new efficient centrifugal dynamic separation system, which can ensure the safe separation and discharge of grinding medium and materials even in the case of large flow or high viscosity. The outlet is designed under the flange, avoid the separator blockage caused by the material precipitation, and the trouble of residue of too much slurry.
